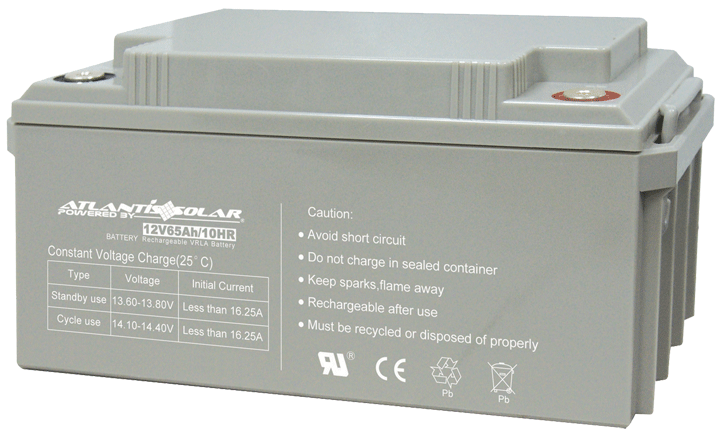

| 12V65h Maintenance Free Sealed Lead Acid Battery |
| 12V65Ah (UL, CE Certifications, 2years Warranty) |
| |
| |
| |
 |
| |
| *Specifications | | | Terminal Type: T12
Terminal Material: Lead | | Nominal Voltage | 12V | | Rated Capacity | 65Ah | | Dimensions | Length | 350mm | | Width | 165mm | | Height | 175mm | | Total Height | 175mm | | Approximate Weight | 21.5Kg | Capacity
77°F (25 °C) | 10h rate (6.5A,10.8V) | 65Ah | | 5h rate (11.3A, 10.5V) | 56.5Ah | | 1h rate (44.2A, 9.6V) | 44.2Ah | | Internal Resistance | Full charged Battery | 6mΩ | | 77°F (25°C) | | Capacity affected by temperature (20h rate) | 104°F (40°C) | 102% | | 77°F (25°C) | 100% | | 32°F (0°C) | 85% | | 5°F (-15°C) | 65% | | Self-Discharge 68°F (20°C) (Capacity after) | 3 month storage | 91% | | 6 month storage | 82% | | 12 month storage | 65% | | Max. Discharge Current | 650A (5s) | | Max.Charging Current | 19.5A | | Terminal Type & Material | T12 Lead | Charge
(Constant Voltage, 25°C) | Cycle | 14.4-14.7V(-24mV/°C) | | max. current:19.5A | | Float | 13.6-13.8V(-18mV/°C) | | Nominal Operating Temperature | 25°C±3°C (77°F±5) | | Operating Temperature Range | -15°C~50°C(5°F~122°F) | |
| |
Remarks:
Please charge the battery for 18 hours at current 6.5A with voltage limitation 14.4V every three months during stock
Please do not stock the battery over 1 year, otherwise the capacity & service life of the battery will be reduced |
| |
